WFI COOLER

EFFORTLESS TEMPERATURE CONTROL

SMART TECHNOLOGY

PUREX is the world’s most advanced WFI Cooler featuring next generation automation and highest level of customization.

The Point of Use Cooler is designed to dispense instant temperature controlled WFI.

The POUs meet the high quality requirements and hygienic standards of the pharmaceutical industry featuring compact, high performance sanitary shell and tube heat exchangers in the double tube sheet configuration.

Why Purex

• Dispense flow rates of 100 LPH (0.5 GPM) to 6000 LPH (25 GPM) at any range of temperatures
• Maintains the velocity of 1.2 m/s as per ASME guidelines
• Double tube sheet heat exchanger to eliminates the risk of cross contamination
• Performance remains unaffected by the loop pressure variations
• Variable dispense flow rates with varying temperatures
• Smart management of POU Systems and client’s control system
• Compliance to CFR 21, Part 11 guidelines (optional)
• Each and every unit undergoes FAT to ensure 100% validation

Product Series

PUREX Economy
PUREX ECONOMY model is off the shelf solution. Dispensing is instant at set point temperature. The dispensing temperature is visible on the display meter mounted on the cabinet door.

This is a standalone unit and operates with a single ON/OFF Switch. Installation is easy with wall or skid mounting option.

FEATURES

• Very easy to operate
• Single/Constant flow dispense
• Single/Constant temperature dispense
• UL & CE Certified
• ASME BPE complaint

• PRODUCT INFORMATION

  WFI COOLER EFFORTLESS TEMPERATURE CONTROL SMART TECHNOLOGY   PUREX is the world’s most advanced WFI Cooler featuring next generation automation and highest level of customization. The Point of Use Cooler is designed to dispense instant temperature controlled WFI. The POUs meet the high quality requirements and hygienic standards of the pharmaceutical industry featuring compact, high performance sanitary shell and tube heat exchangers in the double tube sheet configuration.   Why Purex Dispense flow rates of 100 LPH (0.5 GPM) to 6000 LPH (25 GPM) at any range of temperatures Maintains the velocity of 1.2 m/s as per ASME guidelines Double tube sheet heat exchanger to eliminates the risk of cross contamination Performance remains unaffected by the loop pressure variations Variable dispense flow rates with varying temperatures Smart management of POU Systems and client’s control system Compliance to CFR 21, Part 11 guidelines (optional) Each and every unit undergoes FAT to ensure 100% validation Product Series PUREX Economy PUREX ECONOMY model is off the shelf solution. Dispensing is instant at set point temperature. The dispensing temperature is visible on the display meter mounted on the cabinet door. This is a standalone unit and operates with a single ON/OFF Switch. Installation is easy with wall or skid mounting option. FEATURES Very easy to operate Single/Constant flow dispense Single/Constant temperature dispense UL & CE Certified ASME BPE complaint PRODUCT INFORMATION MODEL NO STEC 05 CAPACITY 100 - 1200 LPH (0.5 to 5 GPM) DISPENSING MODE Hot Dispense & Cold Dispense OPERATION Fully Automatic (ON/OFF Switch) PUREX Advanced PUREX ADVANCED is a standalone POU model and works in fully automatic and in manual mode. FEATURES PLC/HMI based control panel for operation and monitoring 3 level user security controls Single/Constant flow rate dispense Single/Constant temperature dispense UL & CE Certified ASME BPE complaint PRODUCT INFORMATION Model No STAC 05 STAC 15 Capacity 100 – 1200 LPH (0.5 to 5 GPM) 300 - 12000 LPH (1.25 to 53 GPM) DISPENSING MODE Hot Dispense & Cold Dispense OPERATION Fully Automatic & Manual through HMI COMMUNICATION Communicates through WFI control systems through PFC/Ethernet PUREX Custom PUREX CUSTOM is designed to meet the client’s custom requirement. Most features and options can be customized. This model can dispense the WFI at varied temperature and flow rates. Its operation is PLC based fully automatic and can communicate with other PLCs or SCADA. FEATURES Multiple dispensing flow rates Multiple dispensing temperatures Dump to drain during cooling mode Zero Dead Leg isolation valves at header NEMA 4X complaint cabinet ASME BPE compliant CE & UL certification is optional Integrated operation with downstream equipment. PRODUCT INFORMATION Series PUREX CUSTOM Model No STCC XXXX Capacity 100 – 12000 LPH (0.5 – 53 GPM) or higher APPLICATION Cooling OR Heating DISPENSING MODE Hot Dispense & Cold Dispense OPERATION Fully Automatic & Manual through HMI COMMUNICATION Stand alone fully Automatic Remote Operation Communication Options POU to POU Communication Communication with Other Systems Communication with SCADA/DCS System For more info, Please click here.





  PUREX Advanced
  PUREX ADVANCED is a standalone POU model and works in fully automatic and in manual mode.

  FEATURES

• PLC/HMI based control panel for operation and monitoring
• 3 level user security controls
• Single/Constant flow rate dispense
• Single/Constant temperature dispense
• UL & CE Certified
• ASME BPE complaint

• PRODUCT INFORMATION

  Model No	STAC 05	STAC 15
  Capacity	100 – 1200 LPH (0.5 to 5 GPM)	300 - 12000 LPH (1.25 to 53 GPM)
  DISPENSING MODE	Hot Dispense & Cold Dispense
  OPERATION	Fully Automatic & Manual through HMI
  COMMUNICATION	Communicates through WFI control systems through PFC/Ethernet

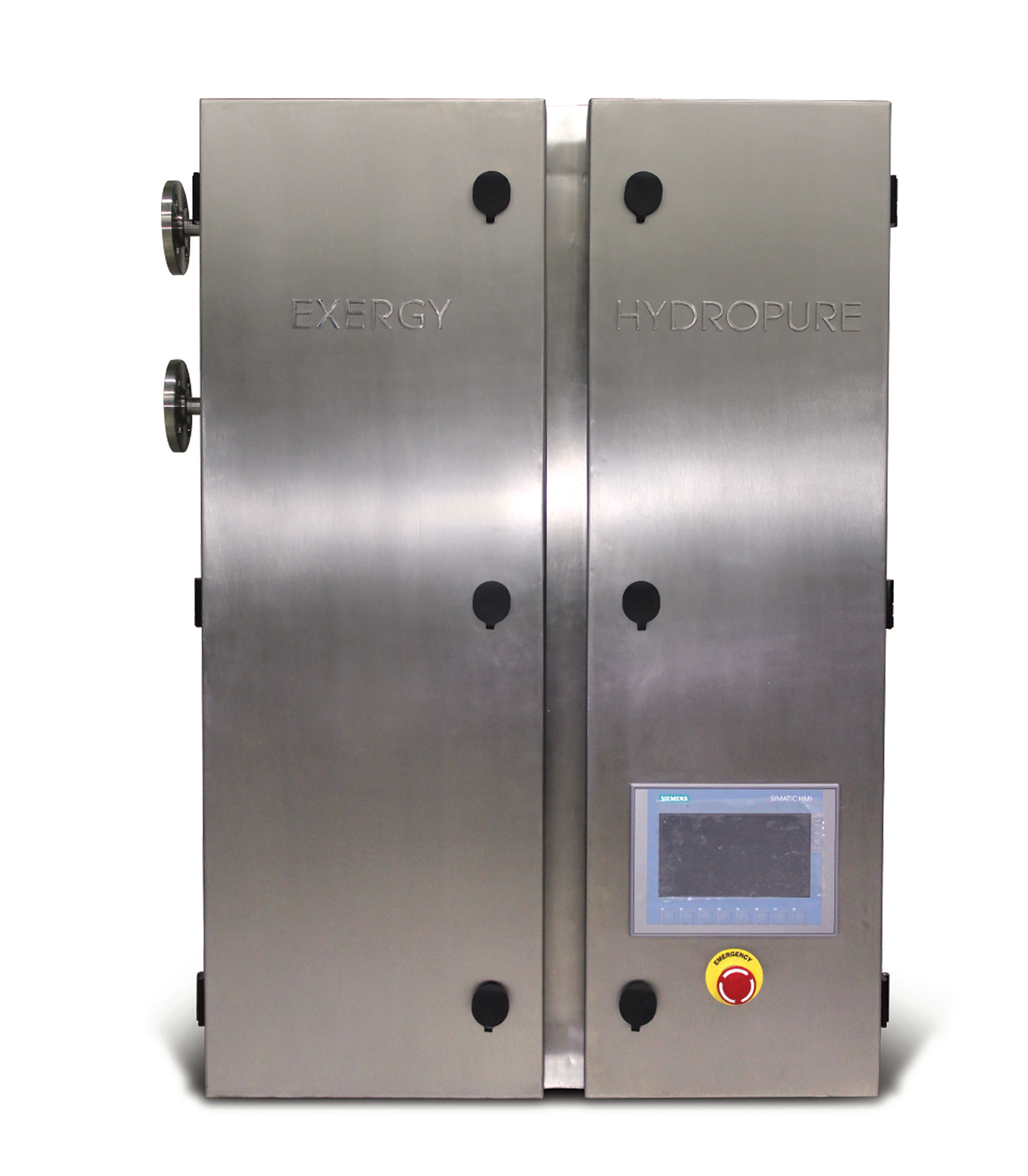

  PUREX Custom
  PUREX CUSTOM is designed to meet the client’s custom requirement. Most features and options can be customized.

  This model can dispense the WFI at varied temperature and flow rates. Its operation is PLC based fully automatic and can communicate with other PLCs or SCADA.

  FEATURES

• Multiple dispensing flow rates
• Multiple dispensing temperatures
• Dump to drain during cooling mode
• Zero Dead Leg isolation valves at header
• NEMA 4X complaint cabinet
• ASME BPE compliant
• CE & UL certification is optional
• Integrated operation with downstream equipment.

•

  PRODUCT INFORMATION

  Series	PUREX CUSTOM
  Model No	STCC XXXX
  Capacity	100 – 12000 LPH (0.5 – 53 GPM) or higher
  APPLICATION	Cooling OR Heating
  DISPENSING MODE	Hot Dispense & Cold Dispense
  OPERATION	Fully Automatic & Manual through HMI

  COMMUNICATION

• Stand alone fully Automatic
• Remote Operation

• Communication Options

• POU to POU Communication
• Communication with Other Systems
• Communication with SCADA/DCS System
